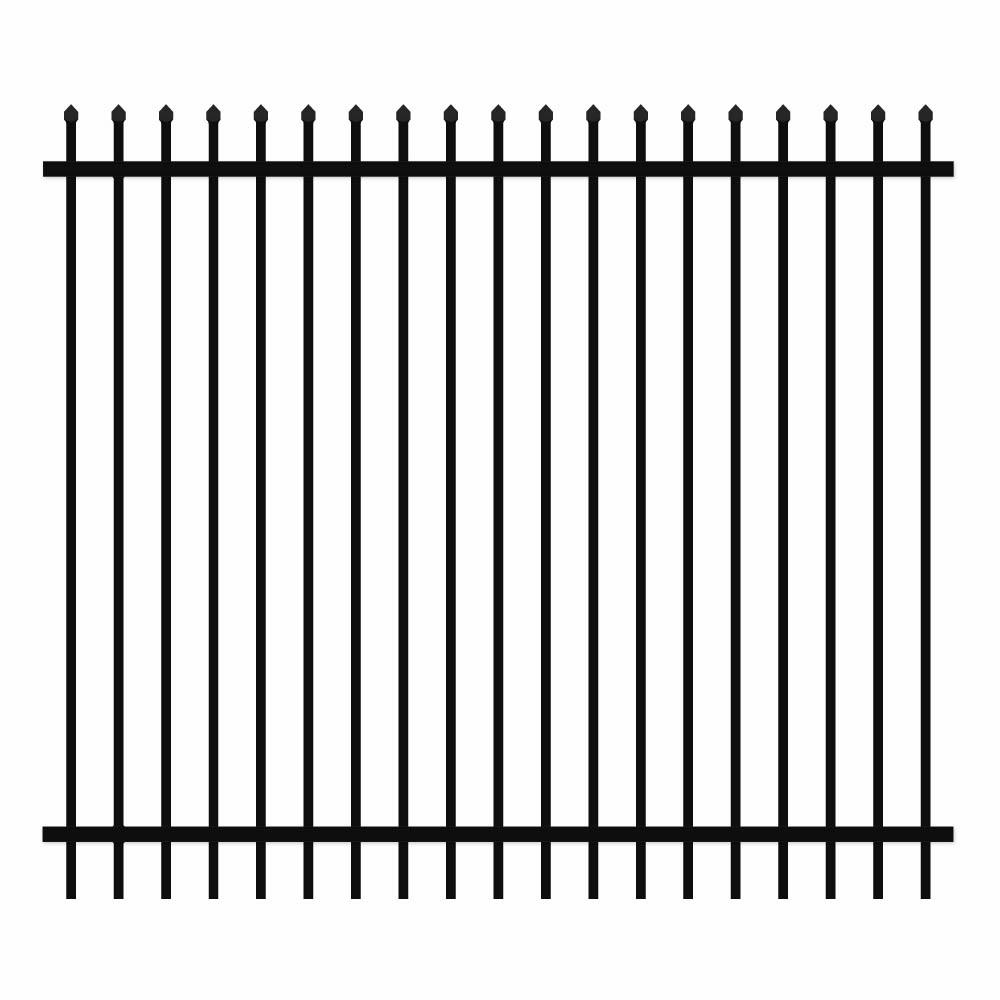

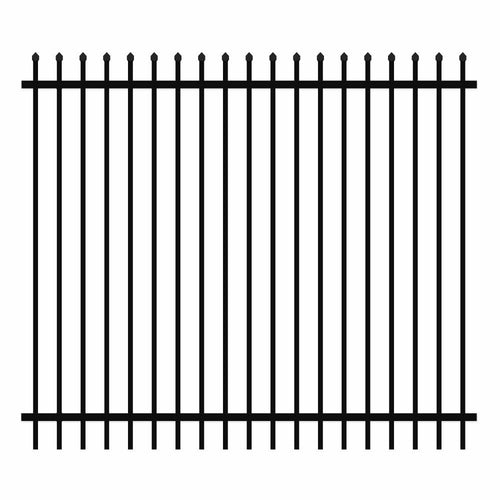

2100 x 2400 mm Satin Black Aluminum Spear Fence Panel

2100 x 2400 mm Satin Black Aluminum Spear Fence Panel

This 2100 mm high x 2400 mm wide aluminum spear panel is intended for projects requiring a taller visual and access boundary than common 1200 or 1800 mm panels. Satin black provides the listed appearance, while the approved engineering, framework, point layout, and installation specification control the completed fence.

Nominal Configuration

Review the Taller Fence Load Path

At 2100 mm high, the panel transfers increased leverage and wind area into rails, brackets, posts, foundations, and adjacent structures. Establish design loads, exposure, post spacing, embedment or base connection, terminal bracing, and gate support with the responsible project professional. The panel listing cannot determine whether an existing post or foundation is adequate.

Control Pointed Picket Placement

Confirm the spear shape, point height, spacing, direction, and accessibility on the fabrication drawing. Evaluate risks near public paths, schools, animals, maintenance zones, or locations where people could fall against the fence. A pointed top may add deterrent appearance but should not be represented as a certified security rating without a defined test or project requirement.

Resolve Modules at Corners and Gates

Create elevations for every run, including grade steps and sloped sections. Use bracket depth and installation tolerance to establish post centers. Identify special panels at corners, walls, gate returns, and the final bay. Coordinate panel rail positions with post connections and gate rails so horizontal lines remain intentional across the project. Confirm bottom clearance at both ends of each panel.

Set the Finish and Packaging Standard

Specify pretreatment, color code, gloss tolerance, coating system, exposure class, and touch-up limits. Approve a production sample when visual match is important. For transport, define bundle count, foam or separator placement, spear protection, edge guards, pallet size, and lifting method. Tall pointed panels need controlled handling to prevent bending, coating damage, and contact injuries.

2100 mm Spear Fence RFQ

Submit site drawings, quantities, profile dimensions, spear detail, rail layout, posts, brackets, foundations, gate interfaces, finish, destination, unloading limits, and required date. Eone Industry can review the bill of materials, samples, custom panels, production, packing, and door-to-door freight. Inspect delivered panels for dimensions, alignment, points, coating, labels, and damage before installation.
