1800 x 2400 mm Satin Black Aluminum Spear Fence Panel

1800 x 2400 mm Satin Black Aluminum Spear Fence Panel

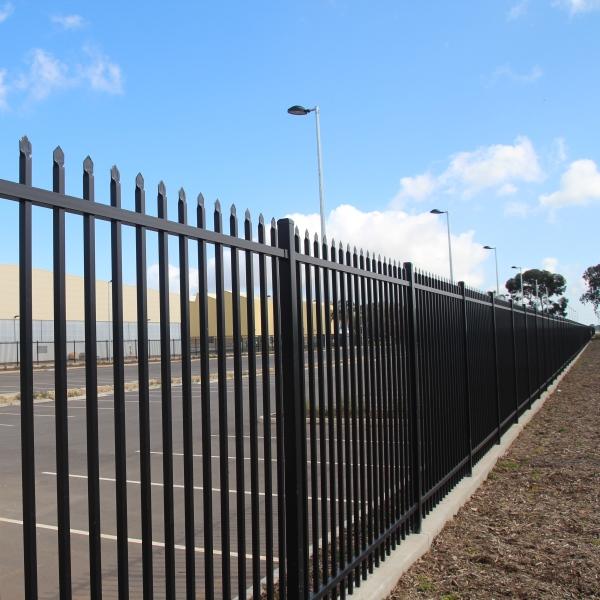

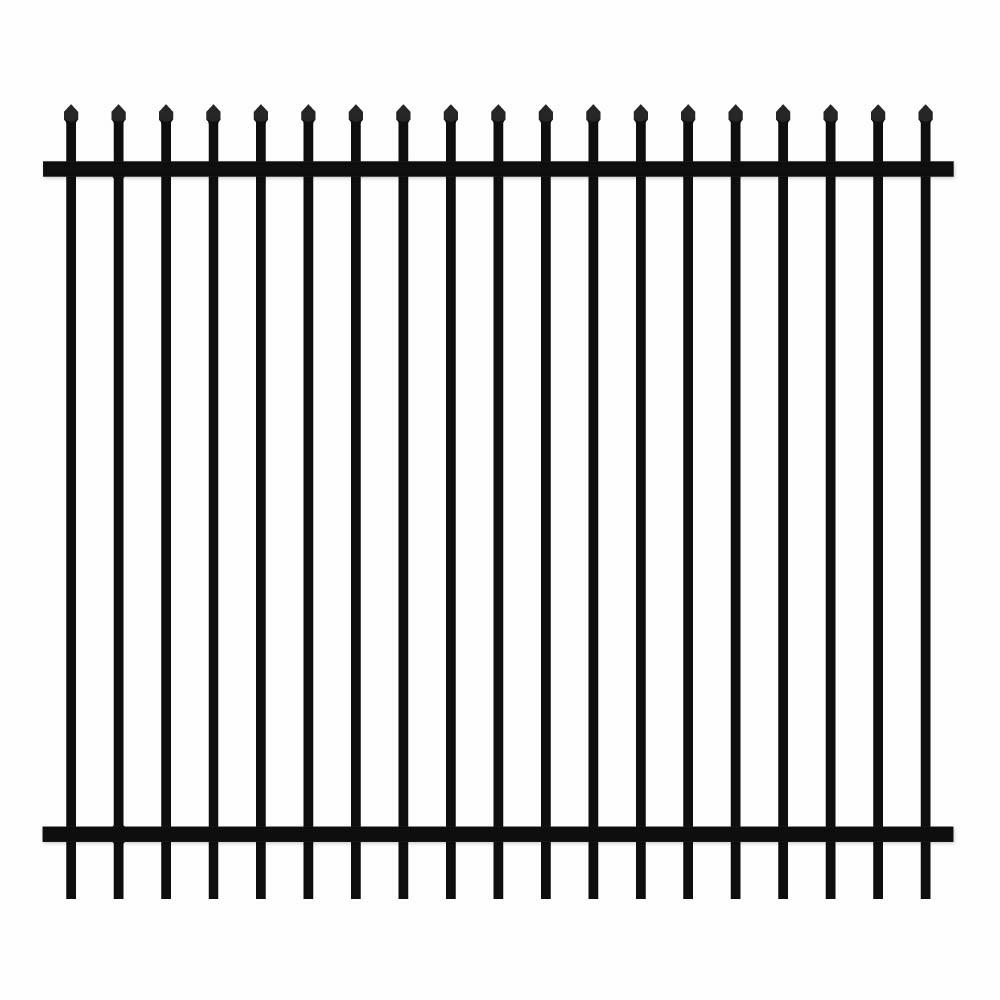

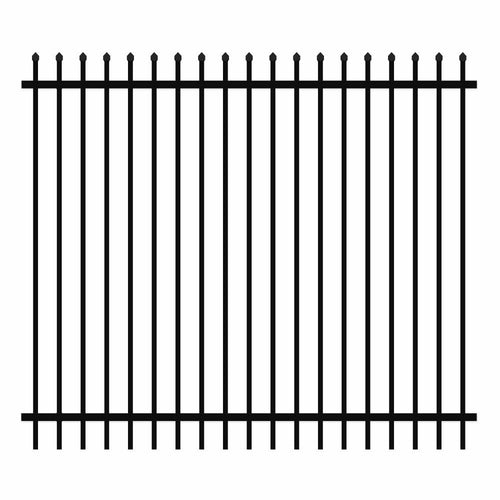

This nominal 1800 mm high x 2400 mm wide aluminum panel combines a spear picket top with a satin black finish. The six-foot-class height can suit commercial boundaries, equipment enclosures, residential perimeter upgrades, and coordinated access projects after the full fence system and local requirements are reviewed.

Product Basis

Plan the Perimeter Before Counting Panels

Measure every straight run between end, corner, pull, and gate locations. Mark changes in direction, finished grade, walls, utilities, and obstructions. Deduct clear openings, then calculate standard modules, cut panels, and custom closing widths. Include bracket and clearance allowances when converting a 2400 mm panel width into post centers. A simple perimeter divided by 2.4 meters is not a complete material takeoff.

Define Picket and Rail Details

The nominal panel size and spear appearance do not fix picket section, spacing, rail profile, wall thickness, spear shape, or connection method. Put those dimensions on an approved drawing. Review openings and pointed elements for the site population and applicable rules. A decorative spear panel is not automatically a certified high-security, pool, guardrail, or anti-climb system.

Verify Structural Connections

Confirm wind and imposed loading, post section, post spacing, foundation, base plate or embedment, rail-to-post bracket, fastener grade, and edge distance. Gates transfer different loads and require dedicated hinges, latches, stops, frames, and foundations. Where aluminum touches another metal or masonry, follow the specified isolation and drainage detail. Do not trap water inside rails or posts without a planned drain path.

Protect the Powder-Coated Surface

Approve the satin black reference and written coating requirements before the production batch. Use padded supports and separators during shipping and staging. Prevent metal swarf, cement residue, incompatible cleaners, and dragging damage. Inspect weld areas, corners, picket points, rail ends, and repaired surfaces. Record any transit damage before installing the affected panel.

1800 mm Panel Quote

Send layout drawings, panel quantity, custom closing widths, posts, brackets, gates, point geometry, coating standard, packing limits, destination, and schedule. Eone Industry can coordinate the approved sample, matching components, manufacturing, sea or air freight, and door-to-door delivery. Receiving teams should verify labels and critical dimensions against the signed drawing.
