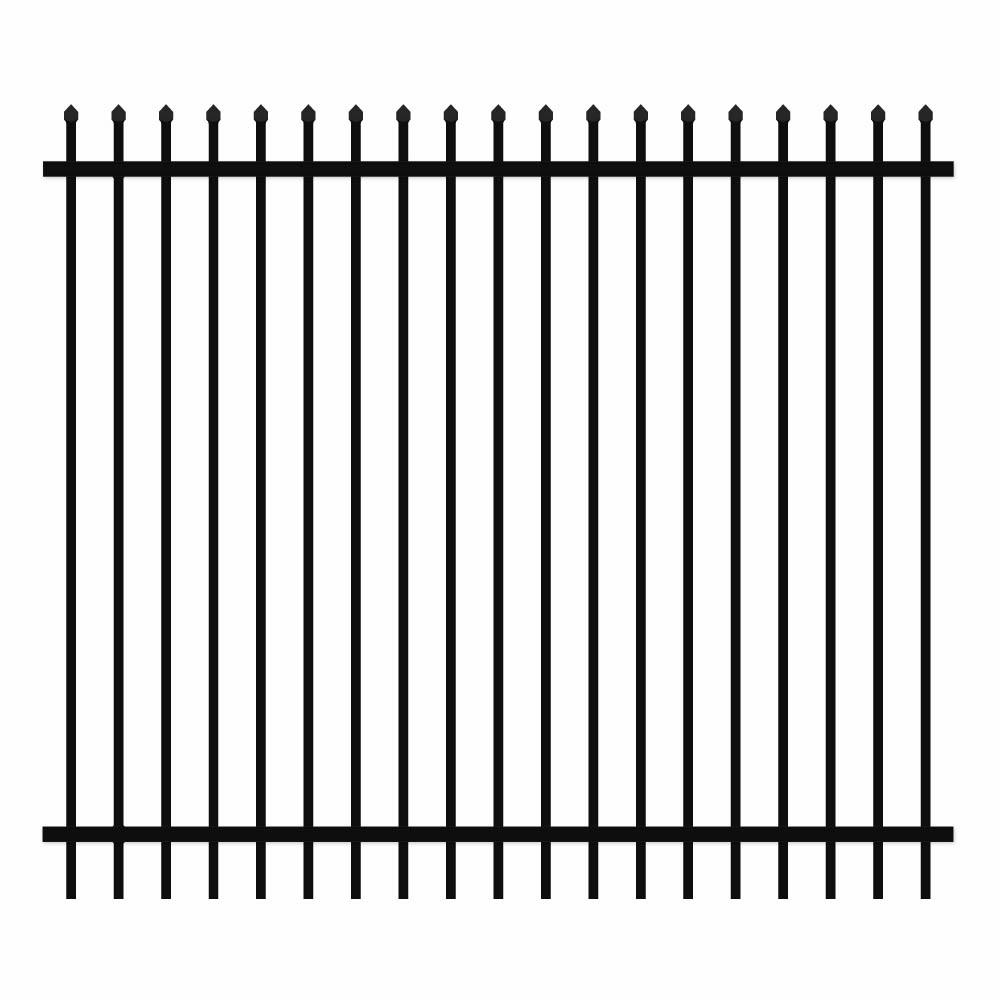

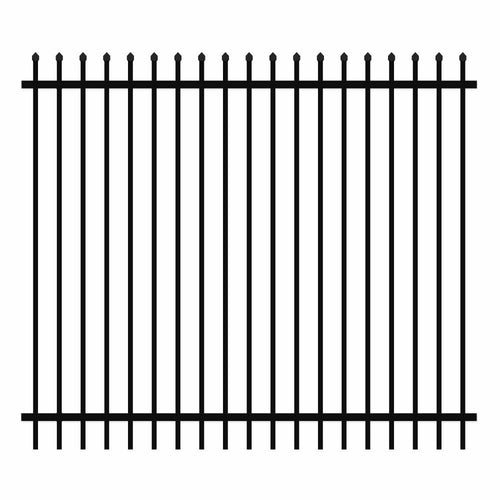

1800 x 2400 mm Satin Black Steel Spear Fence Panel

1800 x 2400 mm Satin Black Steel Spear Fence Panel

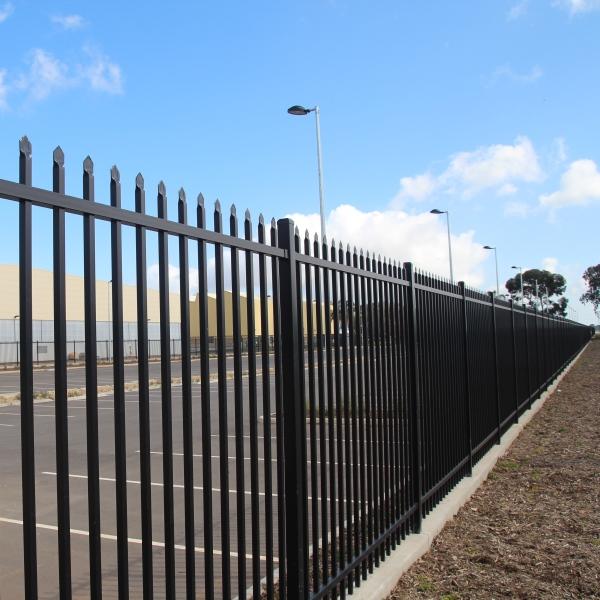

This 1800 mm high x 2400 mm wide satin black steel spear fence panel is an approximately six-foot ornamental fence module for perimeter, access-control, and contractor supply projects. It gives buyers a defined size and pointed picket style, but the full assembly must be coordinated with posts, brackets, gates, foundations, and site requirements.

Product Basis

Perimeter Planning

Measure every fence run between terminal posts, corners, wall returns, and gate locations. Deduct clear openings and identify slopes, curbs, drainage points, existing paving, underground services, and changes in finished grade. Convert the 2400 mm panel width into post spacing only after the bracket, tolerance, and installation method are known. Include a plan for cut panels or custom-width closing panels.

Define the Security Intent

The spear profile may be selected for visual deterrence, but performance depends on height, picket spacing, point geometry, connection strength, post size, and gate hardware. State the intended use clearly: decorative boundary, commercial perimeter, equipment enclosure, access control, or replacement panel. Do not claim a tested security rating unless the owner or engineer provides that standard in writing.

Coordinate Posts and Accessories

Confirm post section, wall thickness, base plate or inground length, bracket style, fastener grade, cap, hinge post, latch post, and gate frame before ordering. Rails should align with posts and gates so the finished run looks intentional. Where steel panels connect to dissimilar metals or masonry, specify isolation, drainage, and touch-up procedures to reduce corrosion risk.

Satin Black Finish Control

Approve the satin black reference under expected lighting, especially when matching earlier phases or other components. The RFQ should list pretreatment, color code, gloss, coating system, exterior exposure, acceptable surface marks, and repair limits. Finished panels should be handled with padded supports, and any field drilling or cutting should follow the approved coating repair method.

1800 mm Spear Panel RFQ

Provide elevation drawings, required panel count, post and gate schedule, spear detail, rail and picket profiles, finish requirements, destination, packing limits, and delivery date. Eone Industry can support sample review, custom dimensions, matching posts, matching gates, manufacturing, and air or sea door-to-door freight. Receiving teams should verify each panel against the signed drawing before installation starts.
