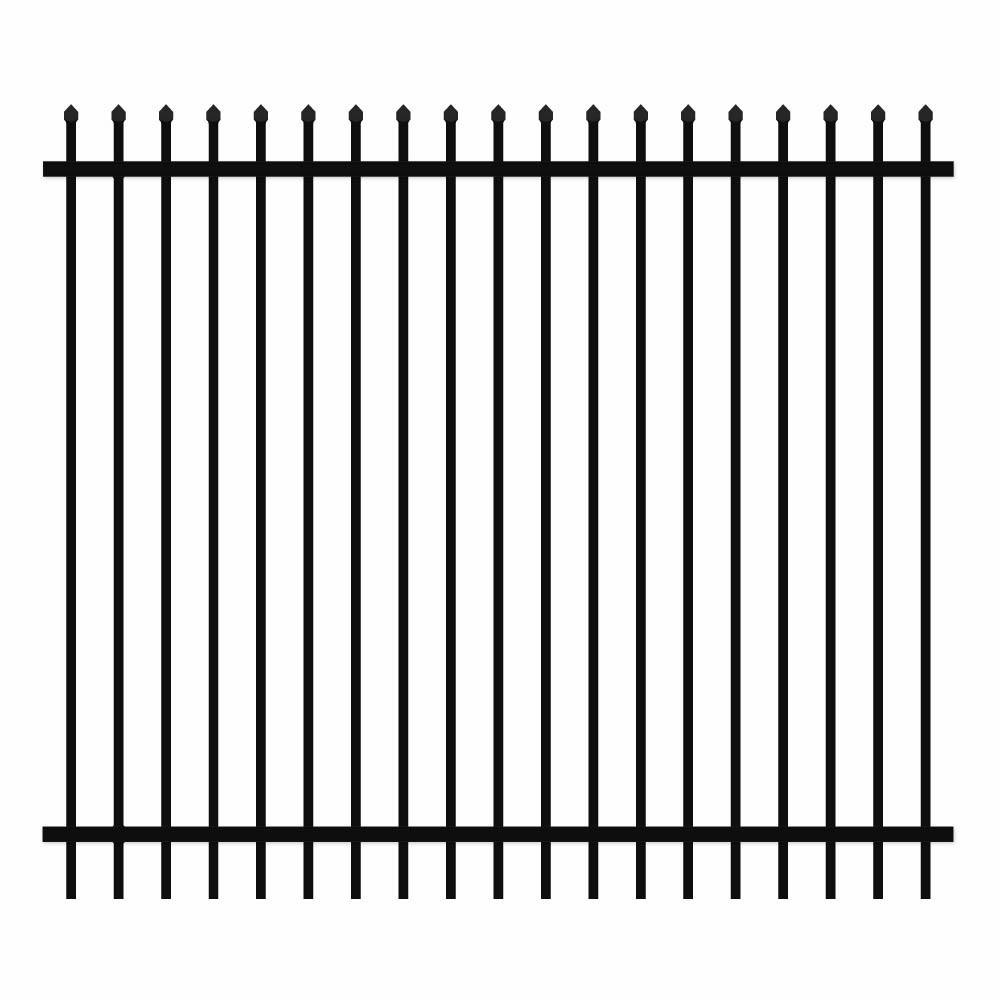

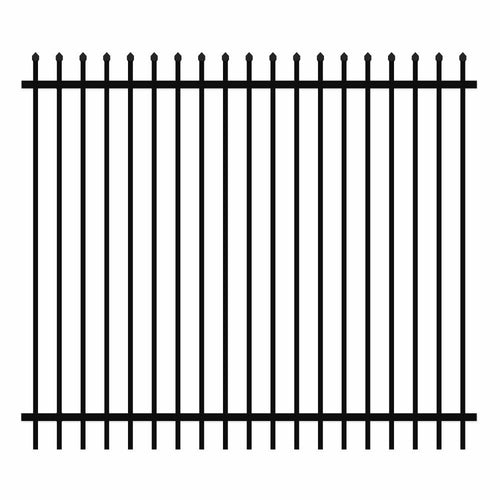

2400 x 2400 mm Satin Black Steel Spear Fence Panel

2400 x 2400 mm Satin Black Steel Spear Fence Panel

This 2400 mm high x 2400 mm wide satin black steel spear fence panel is a tall approximately eight-foot module for perimeter projects that need a stronger visual boundary. Because the panel is tall and pointed, it must be coordinated with engineering, posts, foundations, gates, handling, and site safety procedures instead of being treated as a simple decorative insert.

Panel Data

Treat It as a Tall Fence System

An eight-foot steel panel presents meaningful wind area and leverage. Confirm post section, rail detail, bracket connection, base plate or embedment, foundation design, terminal bracing, soil or substrate, and local requirements with the responsible designer or contractor. The panel listing cannot prove that an existing post line or foundation is adequate.

Control the Spear-Top Risk

Review spear shape, point height, spacing, orientation, and accessibility on the signed drawing. Pointed profiles may not be appropriate near schools, public paths, animal areas, low walls, or locations where people could fall against the fence. If the project requires a different top treatment, request it before production instead of modifying finished panels in the field.

Plan Handling and Temporary Stability

Define how bundles will be unloaded, where panels will be stored, and how each tall panel will be lifted into place. Unsecured panels can become unstable before final fastening or foundation cure. Use suitable equipment, padded supports, and jobsite controls for wind, sharp points, and uneven ground. Protect finished surfaces from dragging, impact, cement residue, and metal swarf.

Coating, Packing, and Inspection

Specify pretreatment, color code, gloss range, coating thickness or system, exterior exposure, and repair limits. Use separators and spear protection in packing so panels do not abrade each other. At receiving, inspect dimensions, rail level, picket alignment, spear tips, coating, labels, and visible transit damage before panels are distributed around the site.

2400 mm Tall Panel RFQ

Provide engineered or project drawings, fence layout, gate schedule, panel count, custom widths, post and bracket details, foundation assumptions, finish, packing marks, destination, unloading limits, and required date. Eone Industry can review samples, matching gates, production, consolidated components, and air or sea door-to-door freight. The approved quotation defines the included parts.
