2-3/4" Square Pyramid Galvanized Steel Fence Post Cap

2-3/4 Inch Square Pyramid Galvanized Steel Fence Post Cap

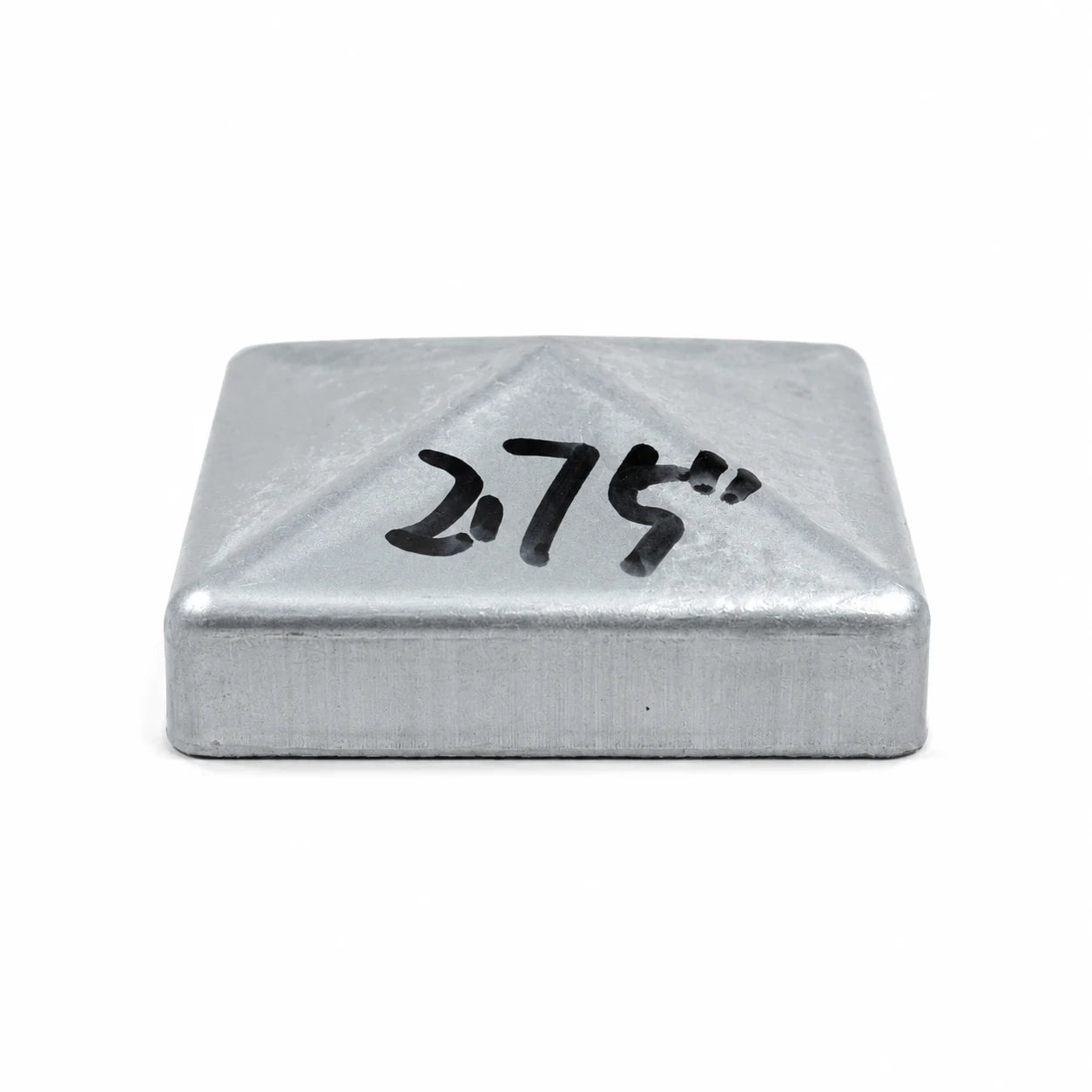

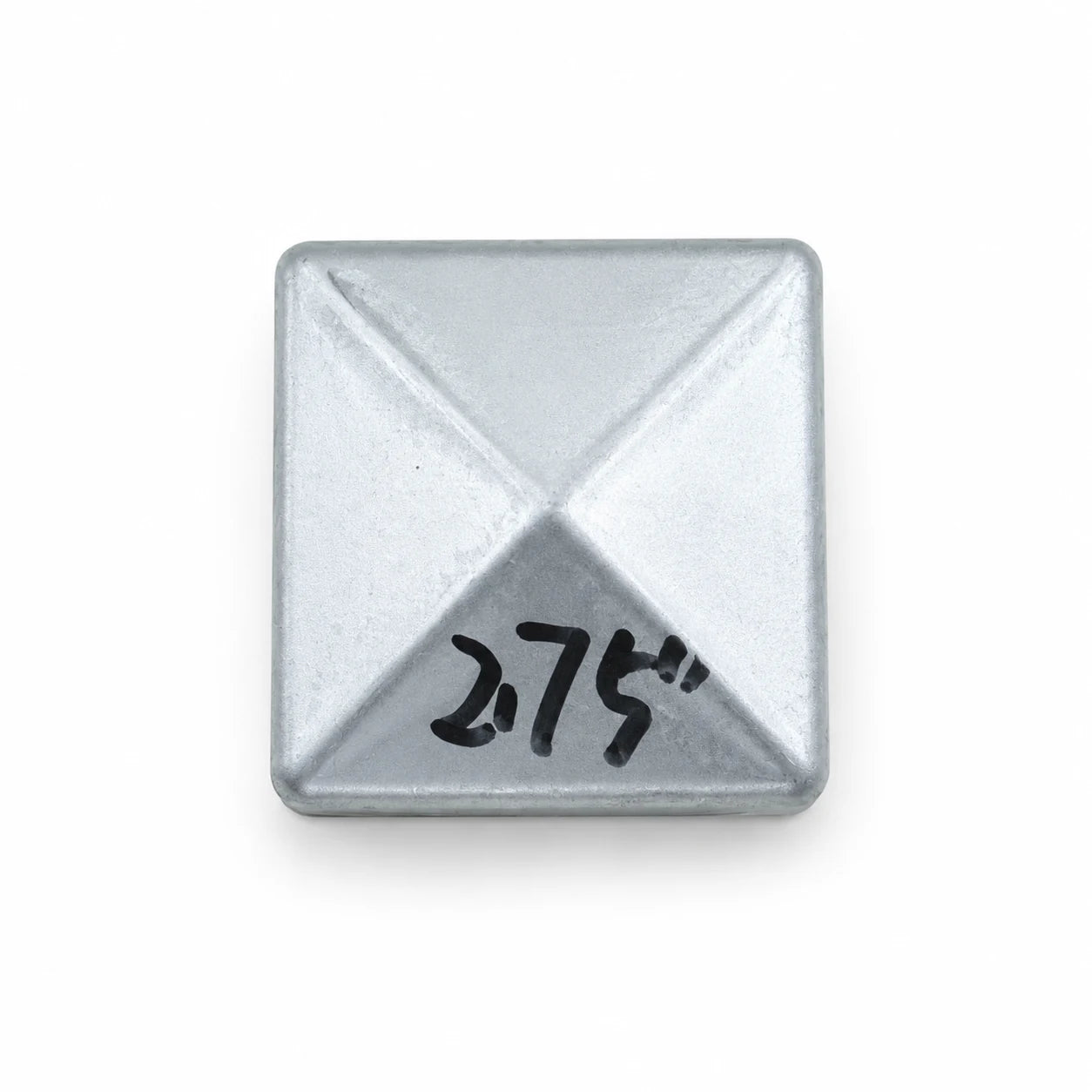

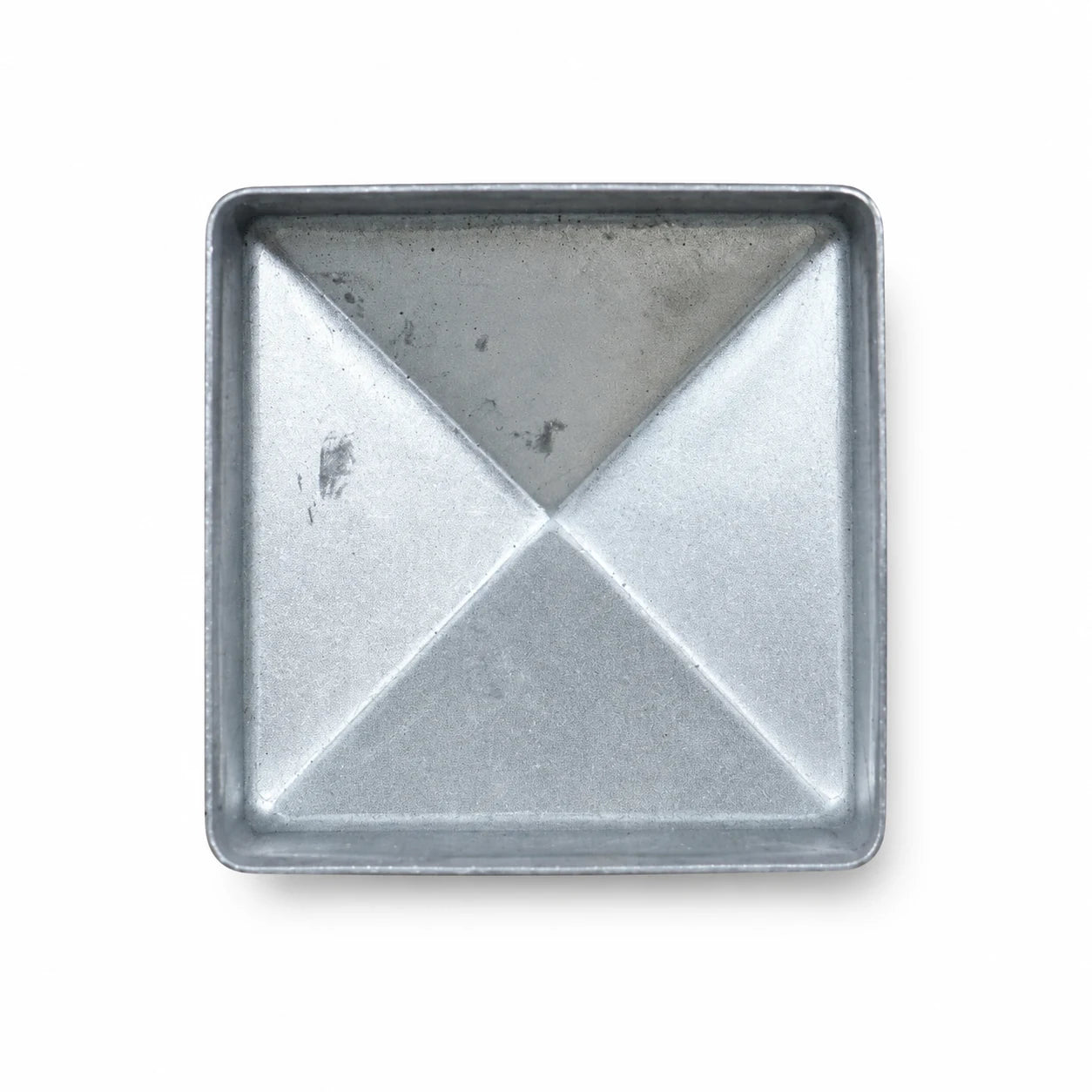

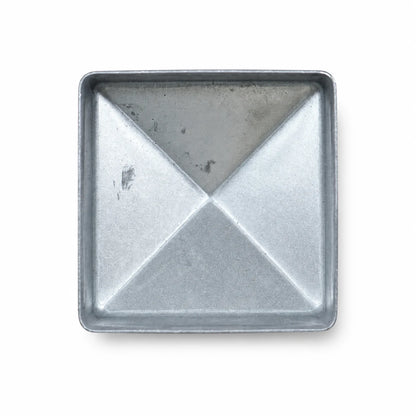

The 2-3/4 inch square pyramid galvanized steel post cap is identified by a 2.750 inch nominal square profile, a raised pyramid form, and a listed approximate mass of 0.08 kg. It can finish compatible ornamental, gate, terminal, repair, and fabricated posts after measurement. This fractional size should be labeled in decimal form so it is not confused with 2-1/2 inch stock.

Published Product Reference

Use the 2.750 Inch Decimal Reference

Write 2-3/4 and 2.750 inches on drawings, sample tags, cartons, and warehouse locations. Measure both tube sides, diagonals, corner radii, seam, and final coating. Approve skirt depth and clearance on the actual post source. Do not issue a 2.500 inch cap as a substitute; one-quarter inch nominal difference materially changes the square interface.

Control the Pyramid Profile Across a Fence Line

Compare peak height, center position, four face angles, edge definition, and visible alignment. If caps are installed at eye level, specify acceptable variation and orientation. Keep one signed sample for the project and for future replacements. The formed pyramid is a visual cover, not a structural closure plate, lifting point, tie-off, or load-rated mounting surface.

Approve Finish in the Formed Areas

State pre-galvanized, galvanizing after fabrication, or powder-coated-over-galvanized requirements. Check the peak, folds, skirt, and formed transitions for the agreed appearance. Provide color and gloss when coating is selected. Surface build can change fit, so approve the final-finish sample rather than relying on an unfinished dimensional trial.

Separate 2-3/4 Inch Pyramid Cartons

Print 2-3/4 IN / 2.750 IN and SKU EONE-FPC-SQ-PYR-2750 on every inner pack and carton. Use dividers that protect peaks and prevent skirt distortion. Set carton count, gross-weight limit, pallet zone, finish, lot, and destination. When multiple pyramid sizes ship together, use a packing map and different pallet labels.

Receiving and Installation Check

Inspect nominal and measured size, diagonal, top symmetry, peak, edges, approximate weight, coating, labels, and quantity. Fit-test against the approved 2.750 inch post group. Quarantine dented or twisted caps instead of reshaping them by impact. Confirm retention and coating repair before repetitive installation starts.

2-3/4 Inch Pyramid Cap RFQ

Provide measured tube dimensions, pieces, visual sample standard, finish, orientation, attachment, packaging, delivery address, and schedule. Eone Industry can prepare samples, bulk production, quality review, and door-to-door freight.

Surface treatment options: Pre-galvanized / Hot Dip Galvanized / Powder Coated. Confirm the required finish, color, gloss, coating build, touch-up method, and final fit allowance before production. These options should be selected in the RFQ instead of treated as interchangeable stock finishes.
