8-5/8" Round Galvanized Steel Fence Post Cap

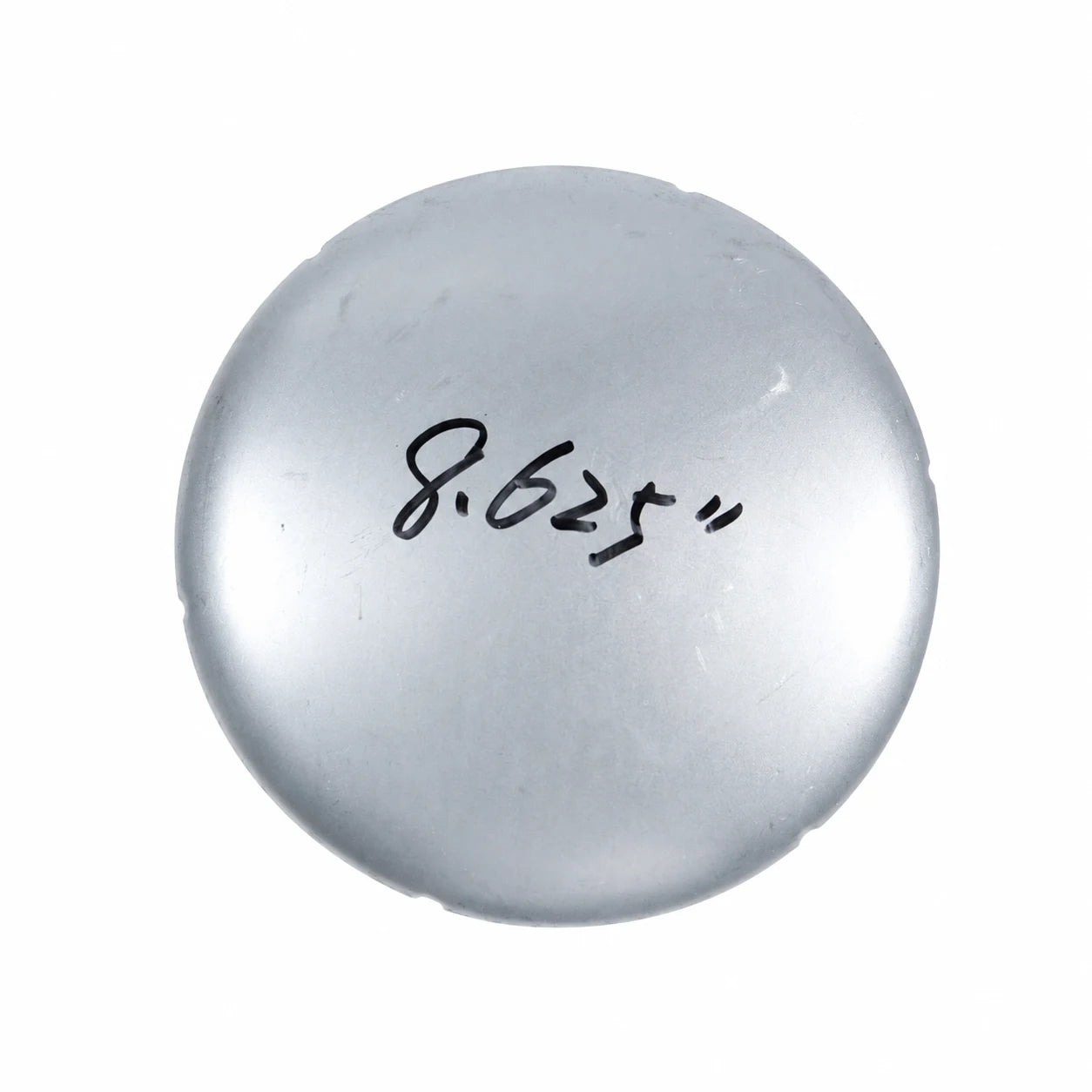

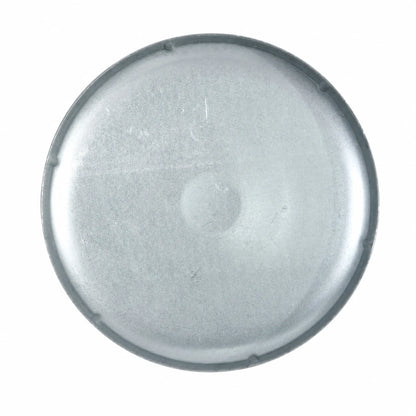

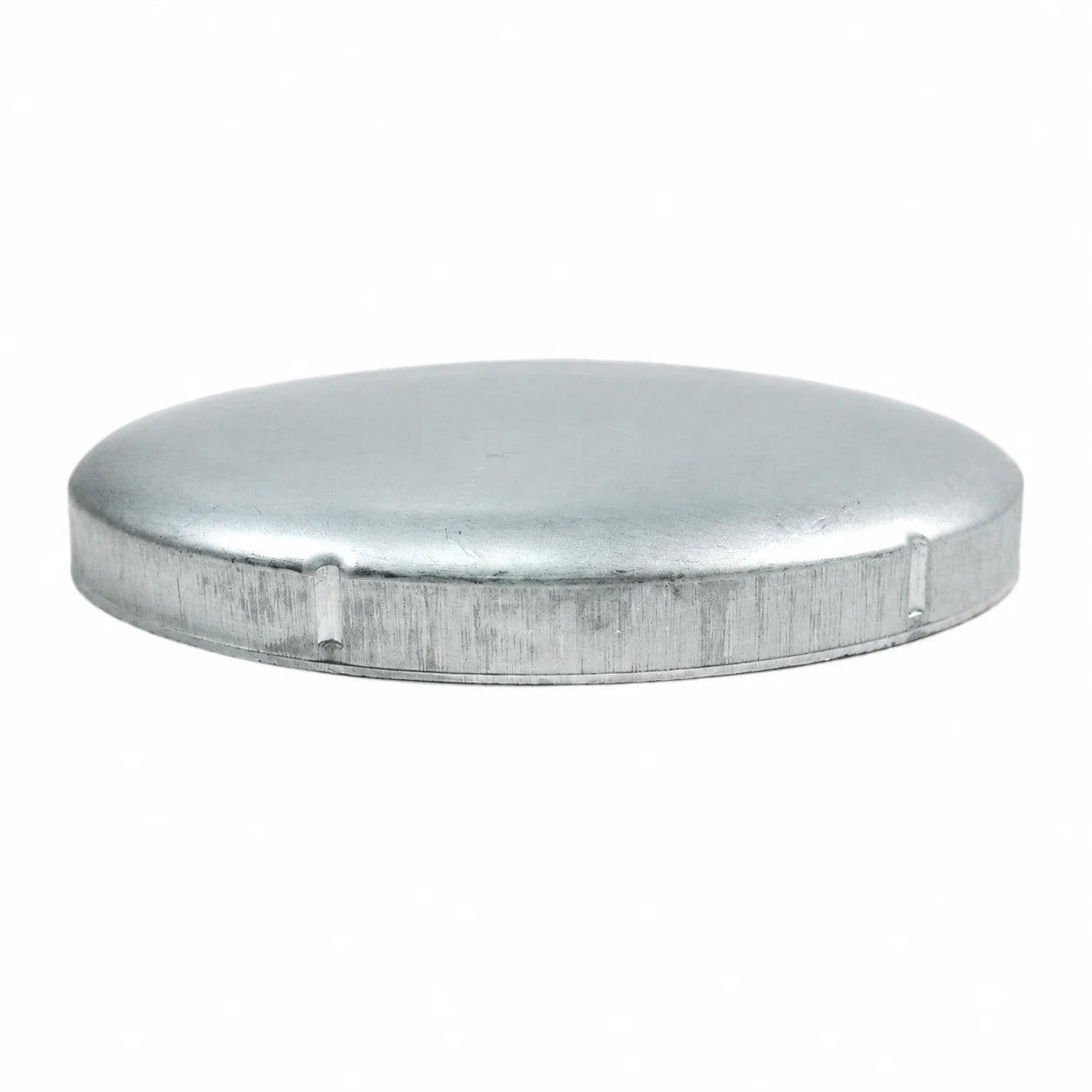

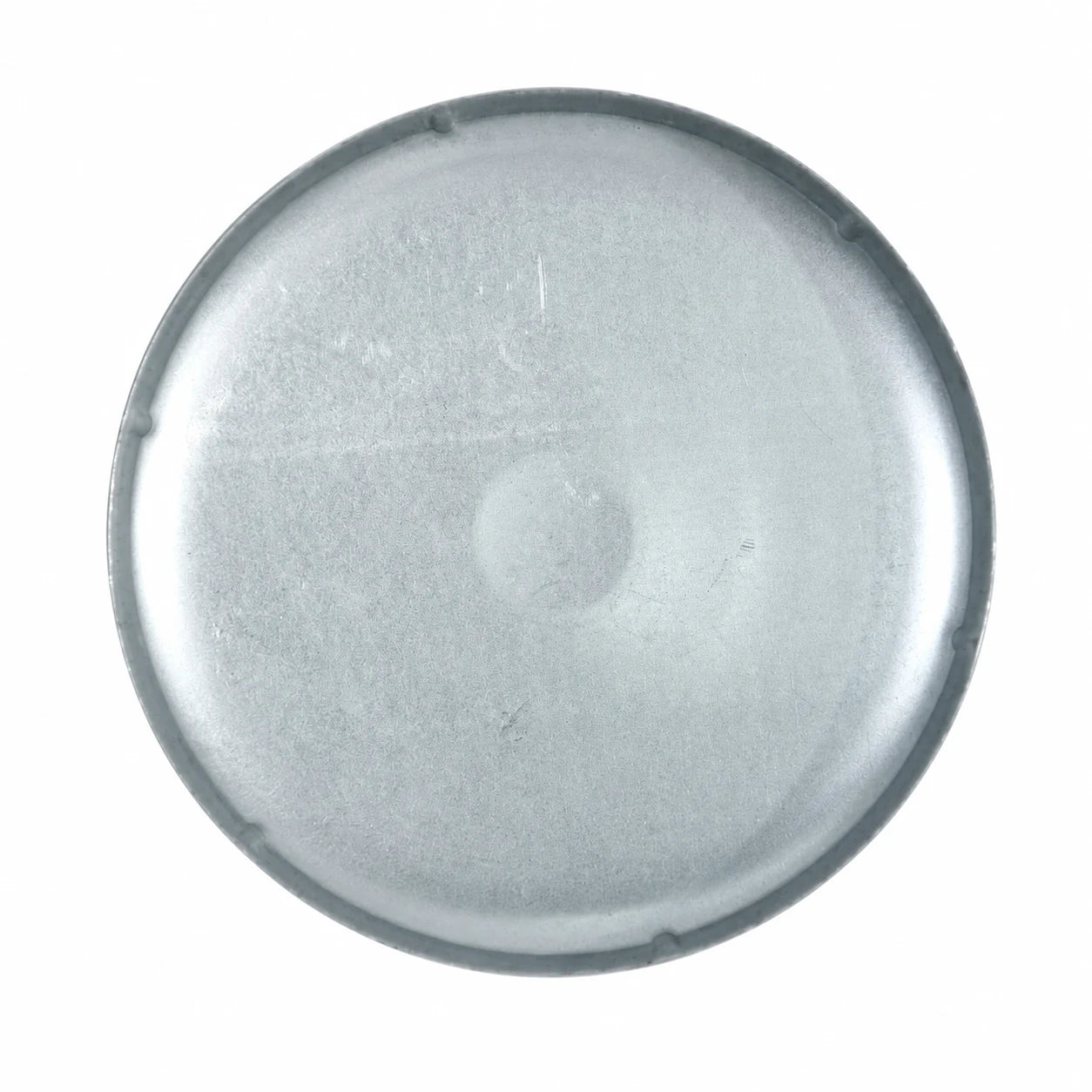

8-5/8 Inch Round Galvanized Steel Fence Post Cap

The 8-5/8 inch round galvanized steel fence post cap is the largest item in this round cap group and is listed at approximately 0.49 kg per piece. It covers a compatible 8.625 inch nominal round post end in heavy perimeter, gate, terminal, barrier, column, or fabrication work. Size, roundness, finish, packing support, and safe handling should all be approved before volume production.

Published Product Reference

Survey the Full Large-Diameter Circumference

Take multiple OD readings around the post and compare the two principal axes. Check seam, flat spots, dents, weld repairs, coating buildup, and cut-end flare. Large tubes can be locally out of round even when one measurement is correct. Define skirt engagement, working clearance, and retention, then test the finished cap without forcing it over the post.

Separate Cover Function From Structure

State whether the post serves a gate, terminal, barrier, bollard, equipment enclosure, or another assembly. Review internal plates, top welds, rails, and access needs. The cap covers and finishes the opening but is not a structural closure plate, lifting attachment, fall-arrest point, or engineering approval for the post, foundation, or connected fence system.

Set Appearance Criteria for a Large Visible Top

Specify the galvanizing route and whether powder coating is required. A broad cap surface can show zinc variation, rub marks, color differences, or dents more clearly than a small component. Approve color, gloss, texture, acceptable marks, and repair limits. Confirm final coating clearance and avoid assigning an unsupported service-life guarantee.

Design Packing Around 0.49 kg Caps

Use the approximate weight to plan carton quantity, then verify actual packed gross weight and lifting method. Support skirts so lower layers do not become oval, and prevent uncontrolled metal-to-metal rubbing. Specify separators, carton orientation, pallet deck support, moisture protection, labels, and unloading equipment. Do not stack dense hardware on unsupported cap profiles.

Use Dimensional and Visual Receiving Checks

Verify nominal 8.625 inch identity, measured cap interface, approximate mass, shape, edge, surface, count, and lot. Fit-check a representative part against the approved post. Photograph transit damage before unpacking the full pallet. Keep the accepted sample and inspection record for later replacements, since large-post maintenance programs may span several years.

8-5/8 Inch Round Cap RFQ

Send post measurements, member purpose, cap quantity, engagement, finish, attachment, carton weight limit, destination, and schedule. Eone Industry can coordinate physical samples, production, inspection, reinforced packing, and sea or air door-to-door freight.
