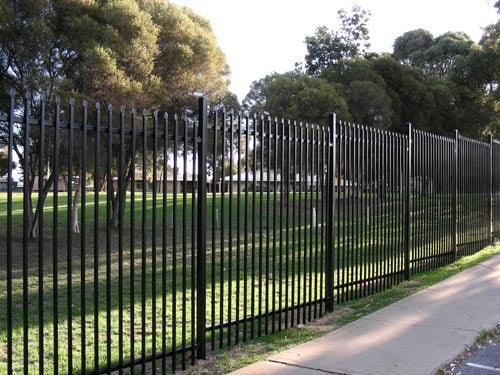

65 x 65 x 3000 mm Powder-Coated Steel Garrison Fence Post with Flange Kit
This nominal 65 x 65 x 3000 mm powder-coated steel Garrison post is listed with a flange kit for tall surface-mounted perimeter systems. Its three-meter length increases wind area and base leverage, so the post profile, wall thickness, flange, anchors, substrate, fence panels, and gate interfaces require project-specific confirmation.
Reference Data
| Square section | 65 x 65 mm |
|---|---|
| Overall length | 3000 mm / approximately 9.84 ft |
| Construction | Steel post with powder-coated finish |
| Mounting | Flange kit listed |
| Color | Confirm approved project color |
| Scope | Post and quoted flange components only |
Design the Surface Connection
Obtain the flange plate dimensions, thickness, weld configuration, hole pattern, and post-to-plate alignment. Confirm anchor type, embedment, spacing, edge distances, substrate thickness, reinforcement conflicts, grout, drainage, and corrosion isolation. Anchors must be selected for the real base material and load case; they are not proven by post size or a catalog image.
Account for Three-Meter Height
Establish finished fence height, bottom clearance, panel rail positions, post spacing, wind exposure, corner and terminal loads, and gate reactions. Any windscreen, sign, privacy panel, or access equipment may change the load. Plan temporary stability during installation so the tall post cannot rotate or fall before the base is fully secured.
Specify Fabrication Details
State steel grade, wall thickness, section tolerance, straightness, cap, bracket holes or tabs, weld quality, plate flatness, and allowable distortion. Approve the relationship between post faces, plate holes, and panel brackets. Retain a first article or inspection drawing when several production phases must use the same connection geometry.
Coating and Transport
Define pretreatment, primer or galvanizing where required, powder type, color, gloss, cure, edge coverage, and repair limits. Protect long posts and flange corners with suitable spacers and end guards. Confirm bundle weight, lifting method, unloading equipment, and storage supports. Record coating or plate damage before installation.
3000 mm Flanged Post RFQ
Provide engineering drawings, post roles, quantities, flange/anchor schedule, substrate, panels, gates, wall thickness, finish, packing, delivery access, and target date. Eone Industry can coordinate sample approval, fabrication, inspection, and sea or air door-to-door freight.
Control Plumb and Base Level
Small base-level errors become more visible over a 3000 mm post. Define allowable plumb, plate level, shim or grout procedure, nut engagement, and final torque or inspection requirement. Check temporary alignment again after adjacent panels are connected. Do not pull a bent or misaligned post into position by overstressing the panel brackets.
