Long plate bending is where a simple flat pattern can become difficult. The outside size may fit the machine, but bend force, tooling, flange height, inside radius, part weight, springback, and handling decide whether the job is practical.
EONE reviews formed parts from the drawing and bend sequence first. A large press brake helps, but it does not replace a proper check of material, thickness, grain direction, bend radius, and features close to the bend line.

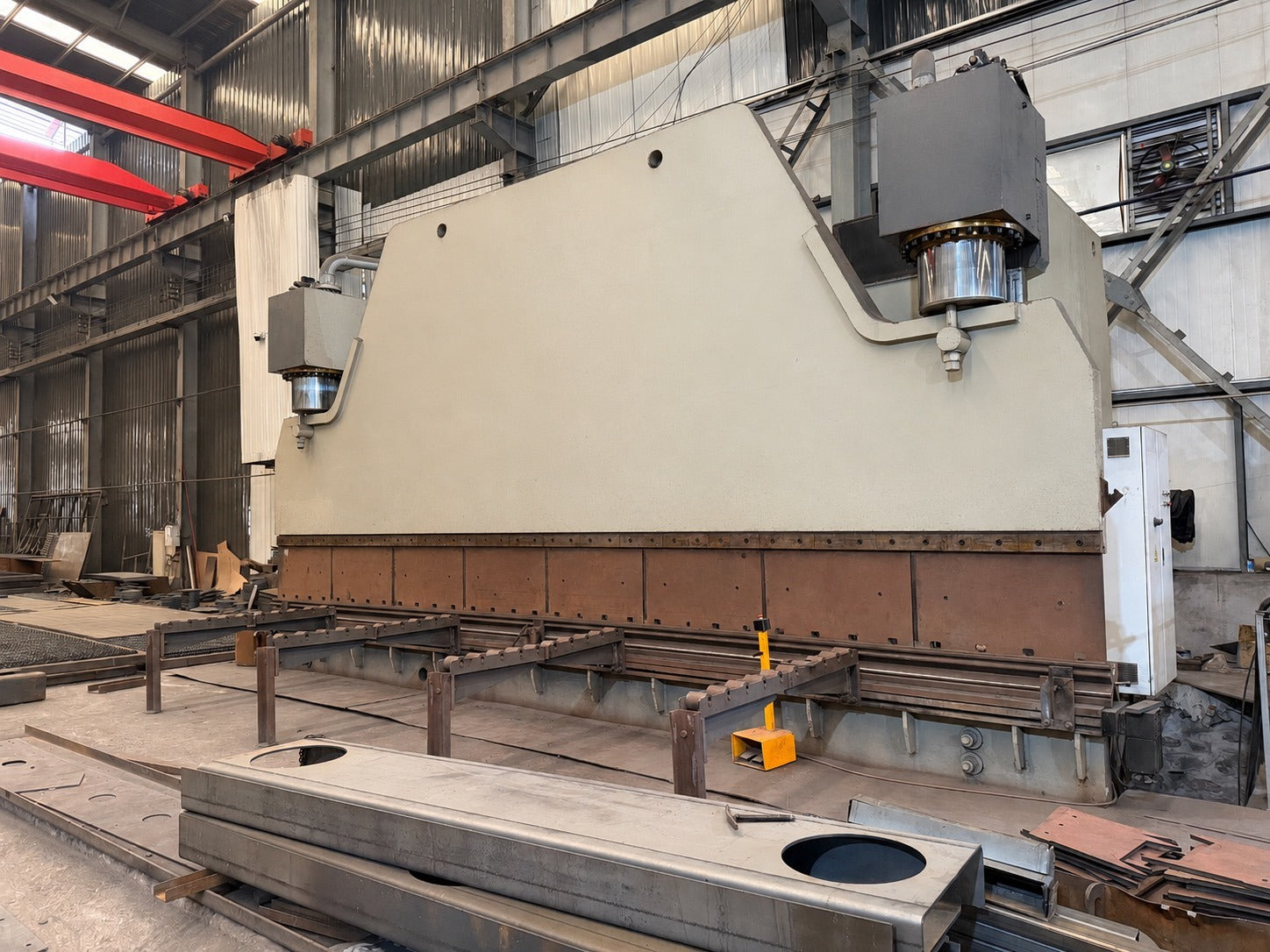

Current capacity reference: 1000-ton class press brake work up to about 8 m long for steel or aluminum around 16 mm, subject to bend geometry. Secondary 200-ton press brake work covers about 4 m long and around 10 mm, depending on the part design.
Why bending needs early review
A flat drawing can make bending look like an easy add-on. It is not. Holes too close to the bend line can stretch. Short flanges may not clear the tooling. A long channel can twist if the bend sequence is wrong. Heavy parts may need support during forming.
The earlier we see the drawing, the easier it is to catch these issues before material is cut. For repeat work, this is also where fixtures, gauges, and inspection points should be planned.
What affects the quote
| Check point | Practical impact |
|---|---|
| Material and thickness | Changes bend force, springback, tooling choice, and minimum inside radius. |
| Bend length and flange height | Determines press brake selection, support needs, and whether the part clears the tooling. |
| Hole and slot positions | Features near the bend line may move or distort and may need to be made after forming. |
| Tolerance and fit-up | Tight angles, parallel faces, or mating assemblies may need sample approval or gauges. |
Large press brake vs. medium press brake
The 1000-ton route is used when the part is long, heavy, or thick enough that a smaller press brake is not practical. This is the route for long channels, covers, guards, formed structural sections, and heavy plate parts.
The 200-ton route is more suitable for medium brackets, panels, repeat formed pieces, and smaller assemblies. It can be faster and more flexible when the part fits the working range. Choosing the smaller route when the drawing allows it can reduce cost and scheduling pressure.
How to make the drawing easier to quote
- Show the material grade and thickness clearly.
- Call out inside radius if it is functional.
- Mark any critical angle, hole location, or mating face.
- Tell us whether the part will be welded or machined after bending.
- Send the flat pattern only if it has already been checked against the bend allowance.
For long or thick parts, the first step should be a feasibility review before the blank is cut. That gives us room to adjust bend sequence, hole timing, tooling, and handling before the job becomes expensive to correct.
Planning a long bend?
Send the formed drawing, flat pattern if available, material, thickness, required radius, quantity, and downstream process. EONE can check which press brake route is practical before production starts.
