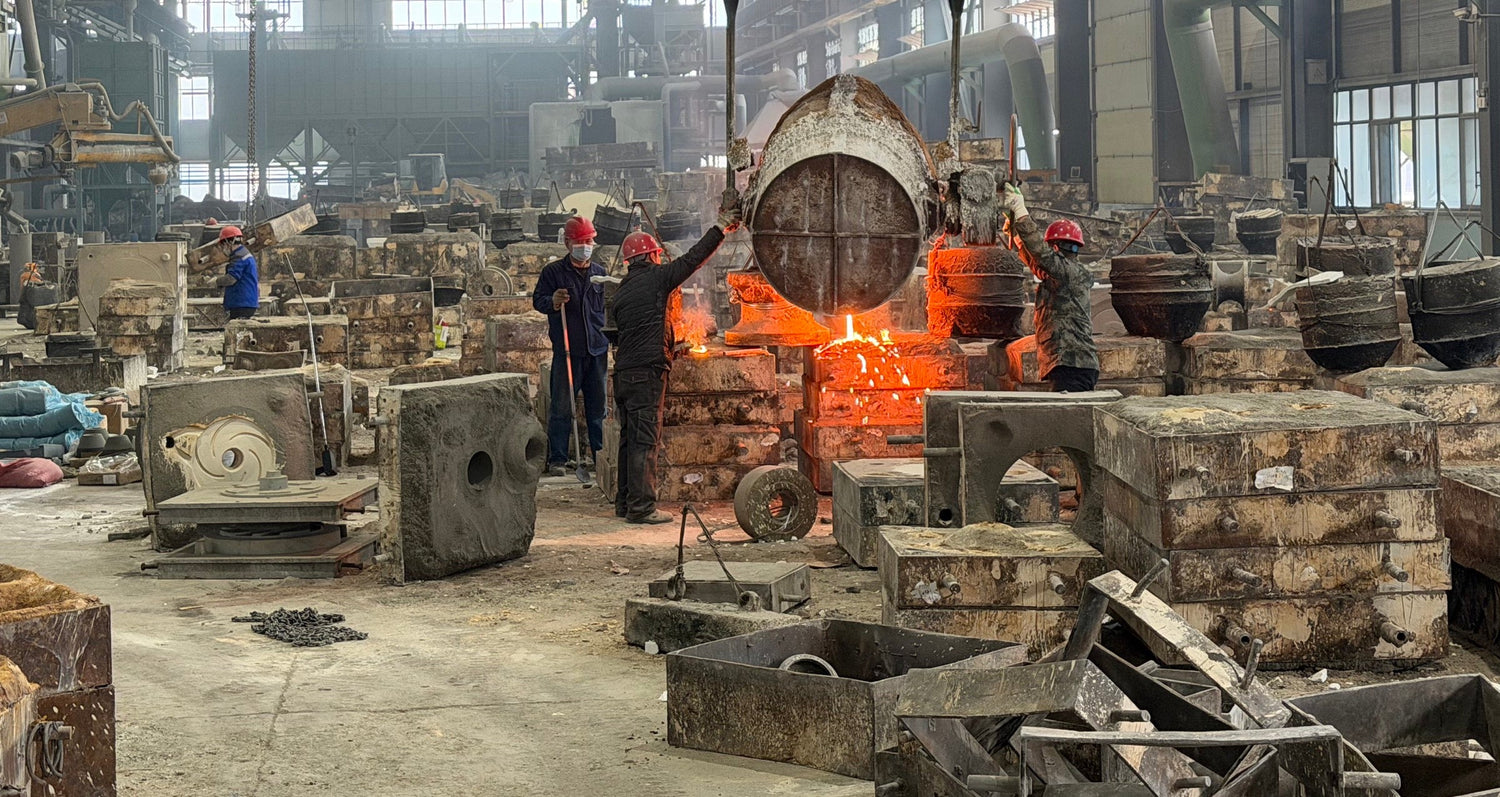

Molten metal pouring during custom casting production

Manufacturing › Aluminum Casting

Custom Iron and Aluminum Casting: From Drawing to Finished Part

A practical overview of EONE custom casting support for cast iron and aluminum parts, from customer drawing to pattern, pour, machining, inspection, and first-article review.

EONE insight · July 21, 2026

Casting is useful when the part shape would be slow, wasteful, or expensive to cut from solid stock. The important question is not only whether a foundry can pour metal. For a project buyer, the real question is whether the supplier can read the drawing, plan the pattern, control the casting route, leave the right machining allowance, and deliver a part that fits the next step.

EONE supports custom casting work for cast iron, aluminum, and project-specified materials when the drawing or purchase specification defines the grade clearly. For special projects, we can review MOQ 1 work. For repeat parts, we can help move from customer drawings into shop drawings, tooling, first-article review, machining, finishing, packing, and shipment planning.

Current casting support: cast iron and aluminum parts, customer-specified materials by drawing, lost-foam pattern work for suitable one-off or complex parts, wood patterns for longer-running programs, MOQ 1 support for special projects, and downstream machining support when the casting must become a finished component.

Where custom casting fits

Casting makes sense when the part has ribs, bosses, cavities, heavy walls, curved forms, or a shape that would remove too much material in machining. It is also useful when the buyer needs a rough part that can later be machined into functional faces, bearing seats, holes, grooves, or mounting surfaces.

For U.S. buyers and project managers, a useful casting quote starts with a controlled drawing package. A photo or sample can help, but the purchase decision should still come back to material, dimensions, tolerance, surface condition, inspection, and what happens after the pour.

From customer drawing to shop drawing

A casting drawing is not always ready for the shop floor. EONE can review the customer drawing and help convert it into a practical manufacturing reference: parting direction, pattern route, draft, shrinkage allowance, machining stock, riser and gate planning, cleaning, and the features that should be held for final machining.

For one-off or special geometry work, lost-foam pattern making may be a practical route. For repeat orders or parts that need stable reproduction over time, a wood pattern can make more sense. The right choice depends on quantity, size, geometry, tolerance, surface expectation, and whether the program may repeat later.

Cast components cooling after foundry processing — The casting plan should include the next operations, not only the pour.

What buyers should define before quoting

Quote item	What to provide
Material	Cast iron, aluminum, or another grade with a drawing note, ASTM callout, or project purchase specification.
Drawing package	PDF plus STEP, DWG, DXF, or a model file when available. Mark machined faces and critical dimensions clearly.
Quantity and program type	MOQ 1 special project, first-article sample, short run, or repeat production plan.
Post-casting work	CNC machining, drilling, boring, facing, heat treatment, coating, assembly, packing, or shipment requirements.
Inspection	First-article approval, dimensional report, hardness, material document, or any project-specific inspection request.

First article, machining, and project control

For smaller parts, a first piece can be supplied for buyer review before moving into quantity production. That sample is useful for checking fit, surface expectation, machining allowance, and any drawing details that are easier to judge with the part in hand.

For larger or higher-risk projects, we welcome factory visits and technical discussions before the order is placed. A visit is often the fastest way to review drawings, tooling direction, inspection expectations, machining sequence, packing, and whether EONE is the right manufacturing partner for the project.

Cast components prepared for machining and inspection — Machining allowance and critical surfaces should be discussed before the casting is made.

A practical way to start

Send the drawing, target material, quantity, critical dimensions, required finish, and where the part will be used. If you only have a sample or an older drawing, send that too. We can review whether the part should be quoted as a casting, whether lost-foam or wood pattern work is more practical, and which downstream operations need to be planned before production.

Need a casting review?
Send the drawing, material requirement, quantity, and any machining or inspection notes. EONE can review the casting route, tooling choice, first-article need, and downstream machining before the project moves forward.
