Start with the gate platform
A gate manufacturer developing a private-label hardware kit should define the gate family it serves: frame profiles, post sections, mounting positions, opening directions, and intended use. Without those boundaries, the same branded carton can be mistaken for a universal replacement kit.
EONE accepts drawings for manufacturability review and can discuss OEM or private-label supply of gate hardware and hinges. Current product examples include adjustable steel hinge brackets, latch and hasp sets, and formed rod hooks. Custom dimensions, materials, finishes, and interfaces remain subject to technical and commercial agreement.
Control the moving interfaces

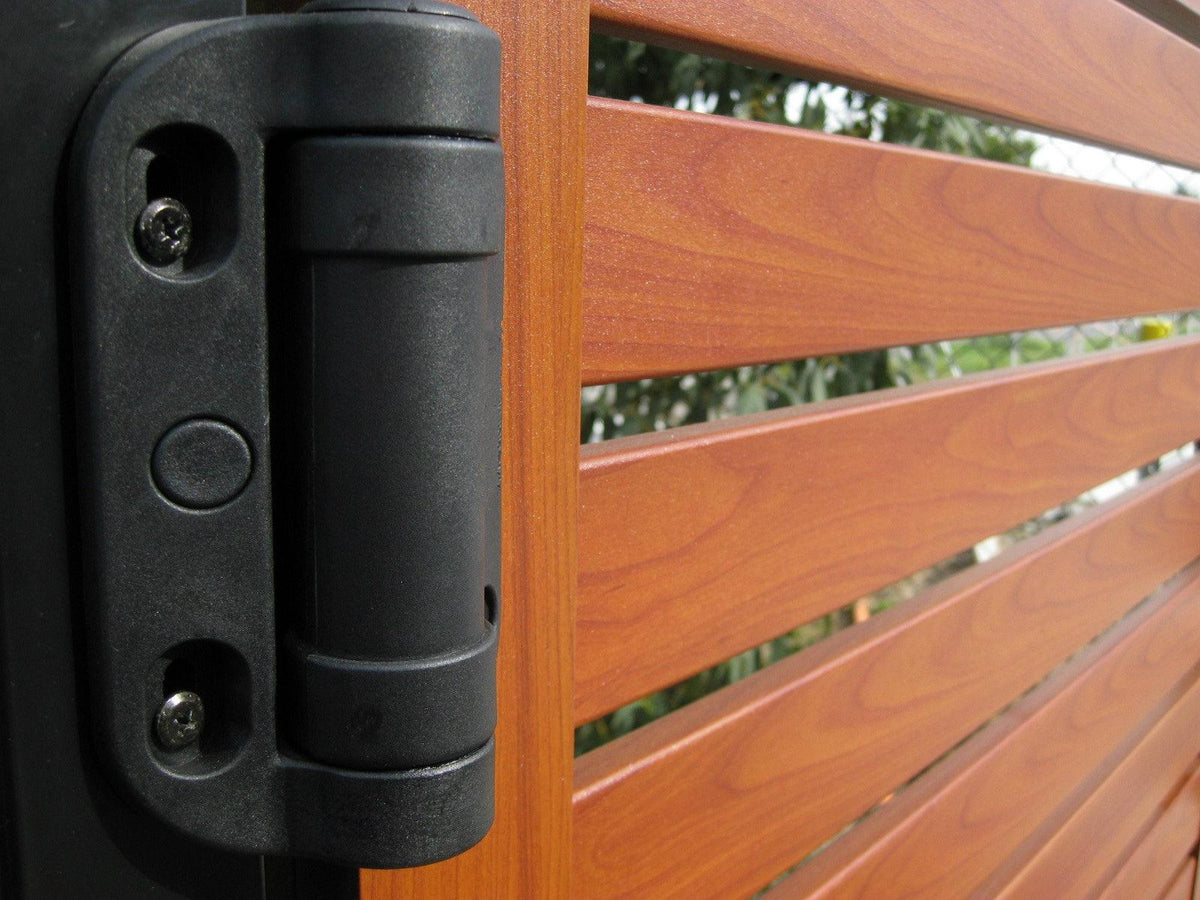

A hinge drawing should identify the pivot centerline, plate geometry, pin and bearing interfaces, mounting holes, retention details, and permitted adjustment. Define finished clearances and any surfaces where coating must be controlled. Show the mating frame and post rather than sending an isolated hinge outline.
For a latch, include the moving part, keeper, approach direction, closed gap, release access, and lock interface. For a rod hook or holding accessory, define bend geometry, receiving feature, and intended function. Do not label a general hook as a safety restraint or rated lifting component.
- Identify units, drawing number, revision, material, finish, and critical tolerances.
- State the intended leaf geometry, operating conditions, and performance requirements.
- Separate purchased fasteners, fabricated parts, service parts, and optional items.
- Describe the installation and inspection information the finished kit needs.
Agree how the prototype will be evaluated
Manufacturability review may identify forming limits, welding access, coating interference, or a difficult assembly sequence. Record proposed changes for customer approval. A production-friendly adjustment should not silently change the pivot position, latch engagement, or interchangeable mounting pattern.
Request a prototype or sample review appropriate to the project. Check assembly, motion, adjustment, fastener access, finish, and part identification. Agree separately on any cycle, corrosion, or load testing, including the fixture, conditions, acceptance criteria, and reporting. A hand-operated sample demonstration is not a quantified performance test.
D&D's published FAQ shows why replacement interfaces deserve explicit control: some newer hinges do not share the older mounting pattern. Treat interchangeability as a requirement to verify, not a consequence of using the same product name.
Keep component approval separate from gate safety
The gate manufacturer and responsible project professionals must review the complete installation. CPSC identifies entrapment hazards associated with automatic gates. A custom hinge or latch approval does not validate the operator, guarding, access controls, foundations, or safety devices. State any required standard or certification evidence in the project specification; none is automatic with an OEM order.
Brand the approved configuration
Submit authorized logos, packaging artwork, SKU names, barcode data, installation-sheet content, and carton marks. EONE can coordinate branding across hardware bags, cartons, and related gate components as agreed. Make left-hand and right-hand packs distinguishable, and identify any parts that must remain paired.
Freeze the drawing revision, bill of materials, finish reference, sample record, inspection plan, and packaging count for reorders. Review substitutions before release. Material, MOQ, tooling, testing, packaging costs, and timing are agreed per project. Submit the custom hardware brief with expected volumes and the gate platform it must support.
References
- D&D Technologies: Hardware FAQ - example of replacement-hole compatibility limits.
- CPSC: Automatic security gate safety - general entrapment-hazard context.
