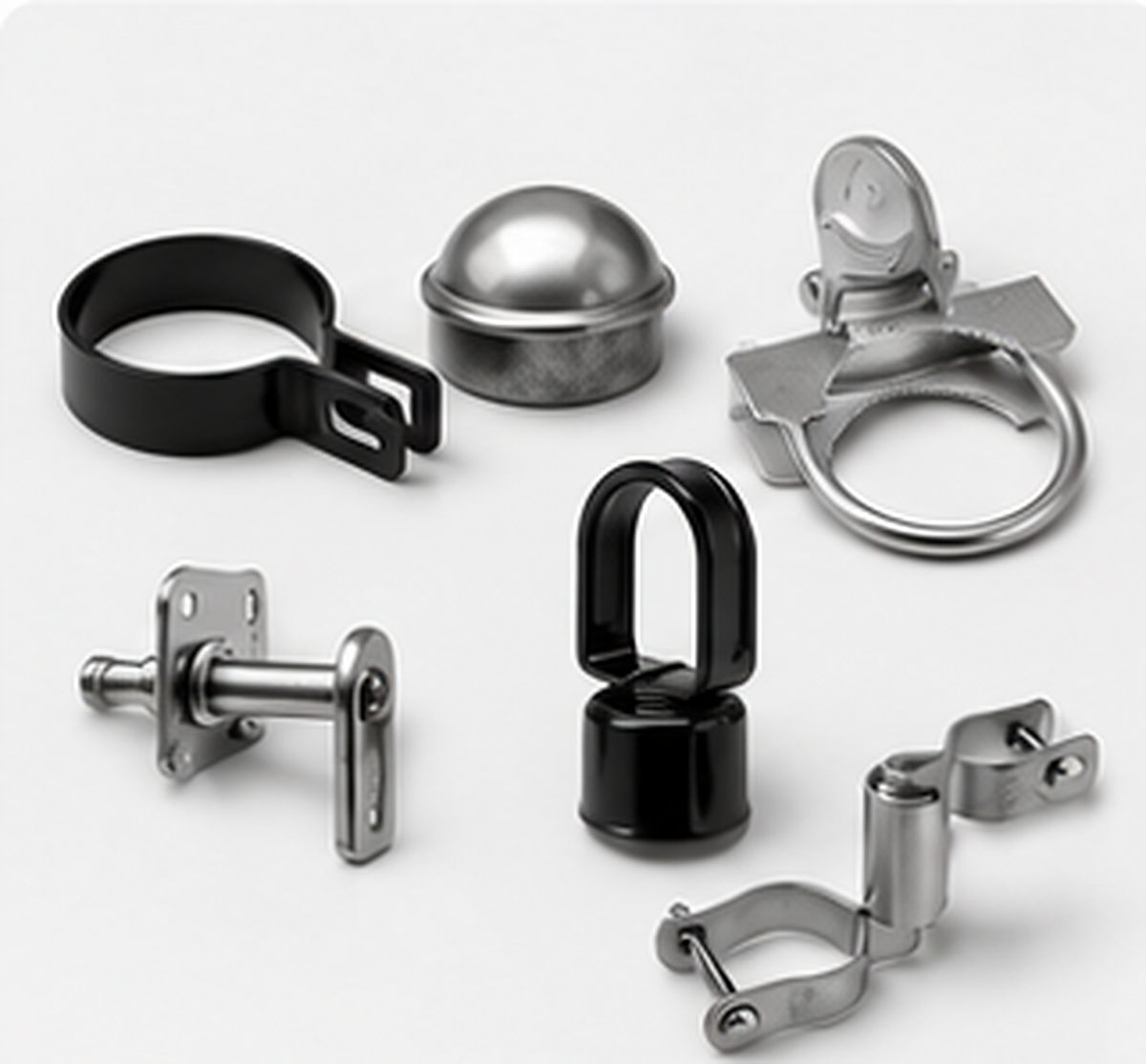

Image: catalog design illustration, not a completed-project photograph. Final configuration is confirmed in the approved specification.
Define the interface before the brand
A private-label fence fitting has to work with the customer's fence system before it can carry the customer's name. Start with the connection and the expected purchase volume. A modified hole pattern may need a different approval route from an entirely new formed clamp.
EONE accepts customer drawings for manufacturability review and can discuss OEM or private-label supply based on the fence fittings and clamps range. Current examples include round brace bands, square sleeve brackets, and rectangular frame brackets. Availability of one shape does not mean every proposed material, forming method, or geometry is feasible.
Submit a complete drawing package
For a formed band, define the finished internal profile, strip width and thickness, ear geometry, hole size, and intended closure. For a square bracket, show internal clearance, corner radii, insertion depth, mounting-tab position, and orientation. For a frame bracket, identify mating plates or tubes and the surfaces that locate the assembly.
- State units, drawing number, revision, datum surfaces, and tolerances that matter to fit.
- Identify material grade, coating route, final color, and whether dimensions apply before or after finishing.
- Provide the mating-member drawing and the proposed fastener specification.
- Separate appearance requirements from functional inspection points and project performance requirements.
A physical reference can help explain a difficult interface, but it should be measured and translated into an approved drawing. Do not rely on an unmarked sample as the only instruction for future production.
Review fabrication and finish together
EONE's production review can examine forming access, bend geometry, hole placement, burr control, and coating effects on assembly. Ask for any proposed change to be identified before approval. A manufacturing adjustment that improves forming consistency may still affect how the bracket sits against the fence post.
If the connection specification invokes ASTM F626, identify the applicable chain-link fitting requirements and requested evidence in the RFQ. That standard is not a blanket qualification for ornamental brackets. For fabricated hollow details that will be hot-dip galvanized, coordinate venting and drainage with the galvanizer before fabrication; the American Galvanizers Association explains why trapped spaces require attention.
Approve the part and the kit
Use sample review or an agreed first article to check the fitting on representative finished members. Record fit, fastener engagement, finish appearance, and the inspection method. If a connection must meet a performance requirement, agree the test plan and acceptance criteria separately; a visual sample does not prove capacity.
Then approve the complete kit: fitting count, bolt length, washers, nuts, protective separators, and spare items. An accurate bracket shipped with the wrong bolt still creates a failed kit. Retain the accepted sample and kit list with the controlled revision.
Prepare branded packaging and repeat orders
Provide authorized artwork, logo placement, SKU structure, barcode data, carton marks, and installation-sheet content for review. EONE can coordinate branding across inner bags, cartons, and related hardware, subject to agreed scope. Avoid unsupported strength, corrosion-life, or certification claims on the label.
Reorder specifications should freeze the drawing, material, finish reference, kit contents, packing count, and inspection requirements. MOQ, tooling, testing, packaging costs, and delivery timing are agreed per project. Send a custom fitting RFQ with drawings, authorized artwork, quantities, and the intended fence system.
References
- ASTM F626: Fence Fittings - scope for specified chain-link accessories.
- American Galvanizers Association: Venting & Drainage - fabrication planning for hot-dip galvanizing.
