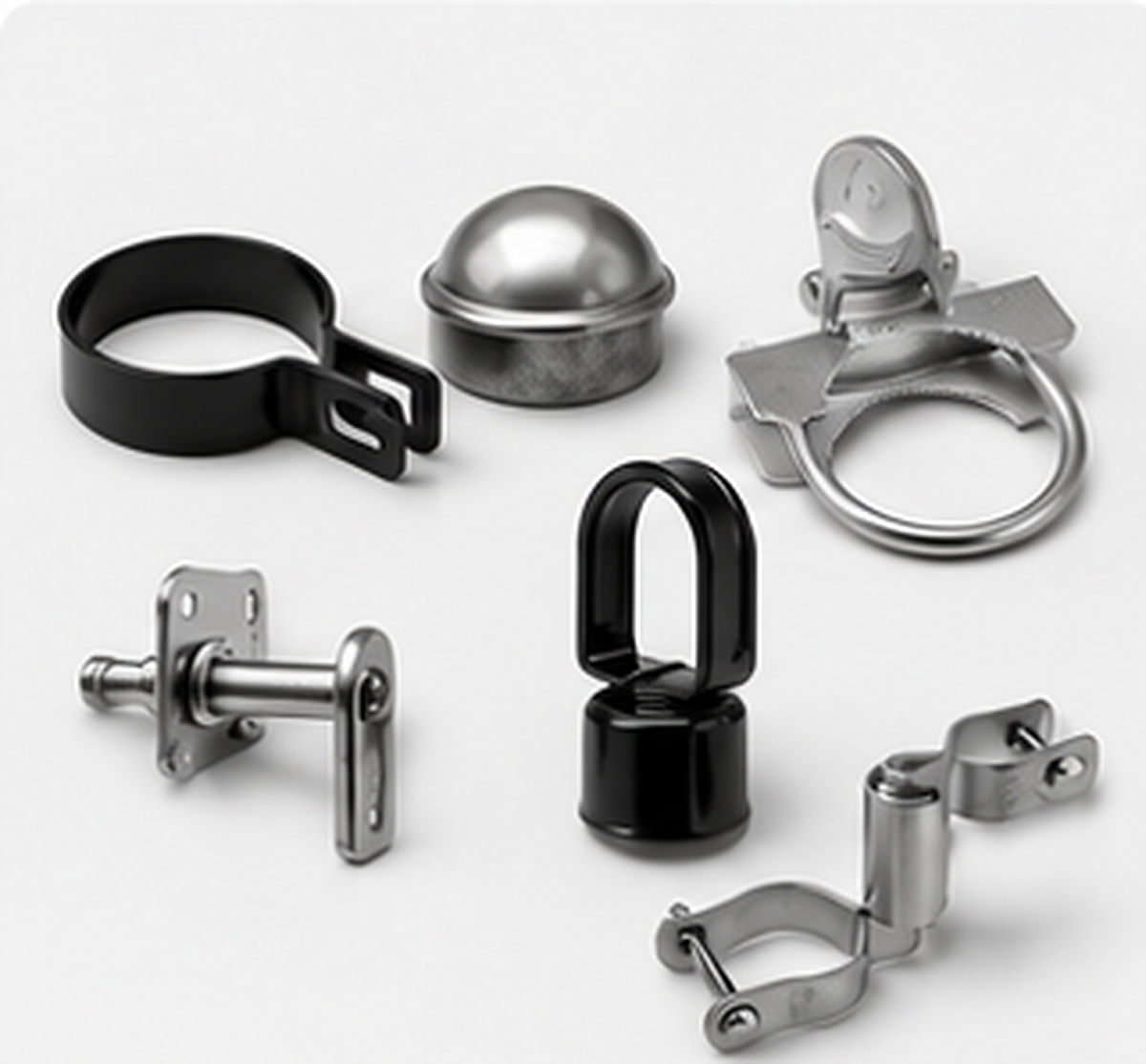

Image: catalog design illustration, not a completed-project photograph. Final configuration is confirmed in the approved specification.
A fitting is part of a connection
A fence fitting can look correct in a photograph and still stop an installation. The band may not close around the finished post, the bracket may bind on a tube corner, or a bolt head may obstruct the adjacent rail. Successful procurement starts with the members being joined, not just the fitting name.
EONE's Fence Fittings & Clamps collection includes galvanized round brace bands, a nominal 40 mm square steel bracket sample, and rectangular steel frame brackets. These are different interfaces, not interchangeable versions of a universal connector. They support chain-link, ornamental, and fabricated fence projects when matched to the approved assembly.
Understand what each part contributes
A brace band wraps around a round member and provides ears for a bolted connection. A square sleeve bracket locates a compatible tube and provides mounting tabs. A rectangular frame bracket may connect or reinforce a fabricated assembly, depending on its drawing. Connection capacity cannot be established from shape alone.
- Round fittings need the actual member outside diameter, plus the band geometry and mating hardware.
- Square brackets need across-face dimensions, corner clearance, tab contact, and fastener access.
- Fabricated brackets need controlled plate thickness, hole locations, orientation, and the intended load path.
The current brace-band listing distinguishes 1-3/8 and 1-1/2 inch variants. Treat those labels as starting points for drawing and sample review, not permission to substitute a nearby metric size. ASTM F626 addresses materials, coatings, and inspection for chain-link fittings; it does not establish that an unrelated custom bracket or an EONE order complies.
Finish changes the buying decision
Specify both the base material and coating route. Galvanized steel and black powder-coated steel describe different aspects of a part, and a black appearance does not identify the underlying corrosion protection. Ask which surfaces receive treatment, how cut edges are handled, and whether the quoted dimensions refer to the finished component.
A thick coating is not useful if it prevents the fitting from seating. Conversely, forcing a tight bracket onto a tube can damage the finish. Review the actual post, rail, fitting, and fastener together, especially when replacing hardware on an older fence containing mixed profiles.
EONE's view: improve interface information first
Our view is that fitting specifications should make mating dimensions and kit contents easier to compare. A clear internal-size drawing, an orientation sketch, and an explicit bolt list are more valuable than a broad claim that a part is heavy duty. Buyers should not need to discover missing washers or incompatible holes during installation.
EONE's flexible, factory-direct approach allows requests for modified geometry, material, finish, and packing to be reviewed together. Pricing value comes from quoting the right part and quantity, avoiding unnecessary variants, and defining a usable package. A custom part still requires feasibility review and agreed production terms.
Send field feedback about difficult fit-ups, inaccessible fasteners, or confusing carton labels. Photos and measurements of mating parts help pinpoint interface details for review. Request a sample for fit and finish review, then request a project quotation with the accepted connection details.
References
- ASTM F626: Fence Fittings - chain-link fitting specification scope.
- CLFMI technical information - fence-system specification and inspection resources.
